CARAVAN & 4X4 BATTERIES

AUTOSMART 12V 105AH

(LIFEPO4 - LITHIUM PHOSPHATE
WITH BLUETOOTH)

AUTOSMART 12V 210AH

(LIFEPO4 - LITHIUM PHOSPHATE
WITH BLUETOOTH)

AUTOSMART 12.8V 315AH

(LIFEPO4 - LITHIUM PHOSPHATE
WITH BLUETOOTH)

AUTOSMART 12V 105AH TRAILER

(LIFEPO4 - LITHIUM PHOSPHATE
WITH BLUETOOTH)

AUTOSMART 12V 210AH TRAILER

(LIFEPO4 - LITHIUM PHOSPHATE
WITH BLUETOOTH)

AUTOSMART 24V 105AH

(LIFEPO4 - LITHIUM PHOSPHATE
WITH BLUETOOTH)

AUTOSMART 24V 210AH

(LIFEPO4 - LITHIUM PHOSPHATE
WITH BLUETOOTH)

AUTOSMART 32V 105AH

(LIFEPO4 - LITHIUM PHOSPHATE
WITH BLUETOOTH)

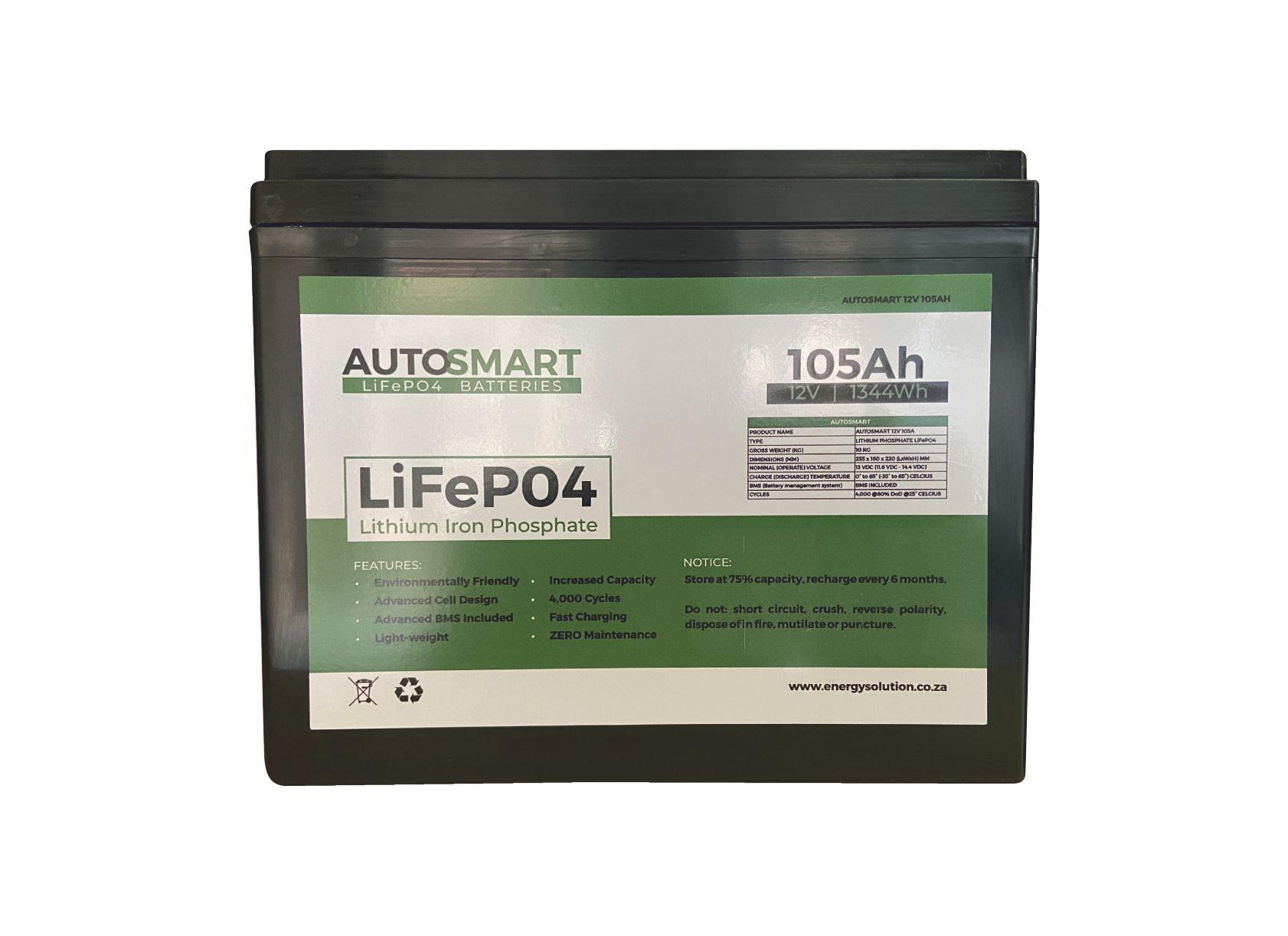

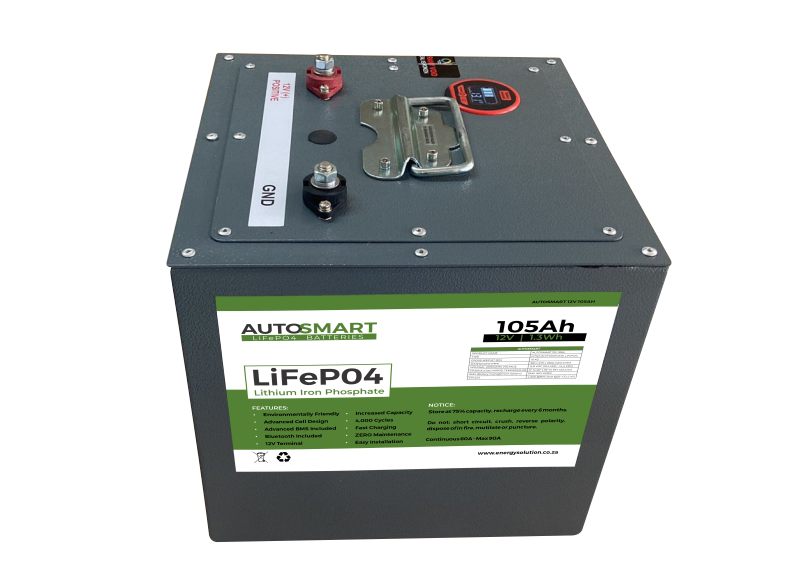

AUTOSMART 12V 105AH
(LIFEPO4 - LITHIUM PHOSPHATE WITH BLUETOOTH)
Description:
Nominal Voltage:
12.8V
Nominal Capacity:
105Ah
Energy:
1,344Wh
Dimensions:
260 x 165 x 210 (L x W x H) mm
Weight:
10kg
Cycle:
3,500 Cycles
Charge Volt:
14V - 14,6V
Max. Charge Current:
52.5A (0.5C)
Charge Cut-off Voltage:
14.6V +/-0.2V
Discharge Cut-off Voltage:
10.4V
Max. Continuous Current:
100A
Max. Pulse Current:
150A
IP56:
Water Dust Resistance. Plastic case with M8 Terminal
  • BMS: Protection Function

Over charge protection, over discharge protection, over current protection, short current protection, balanced function, temperature protection.



  • Bluetooth included - via smart phone (smart BMS on istore / playstore).



  • Monitor - SOC, SOH, cell balance, cycle count.

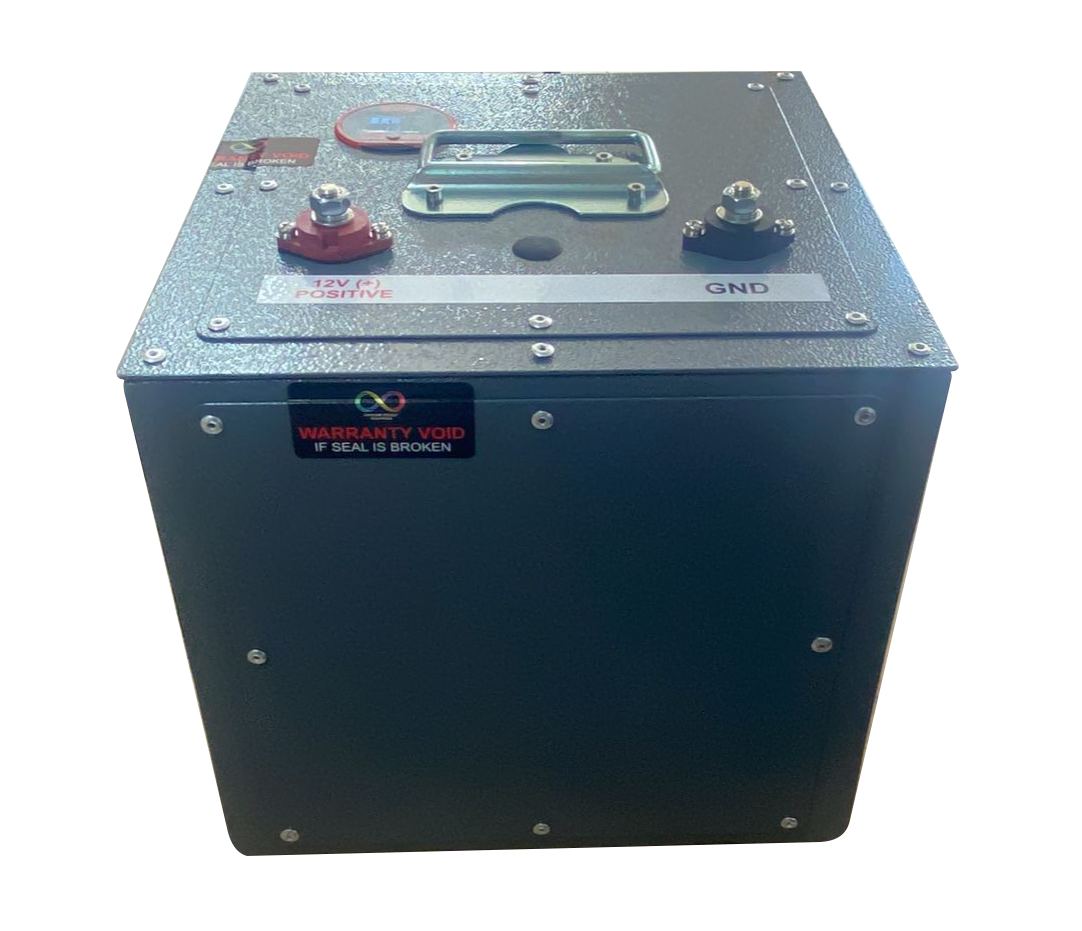

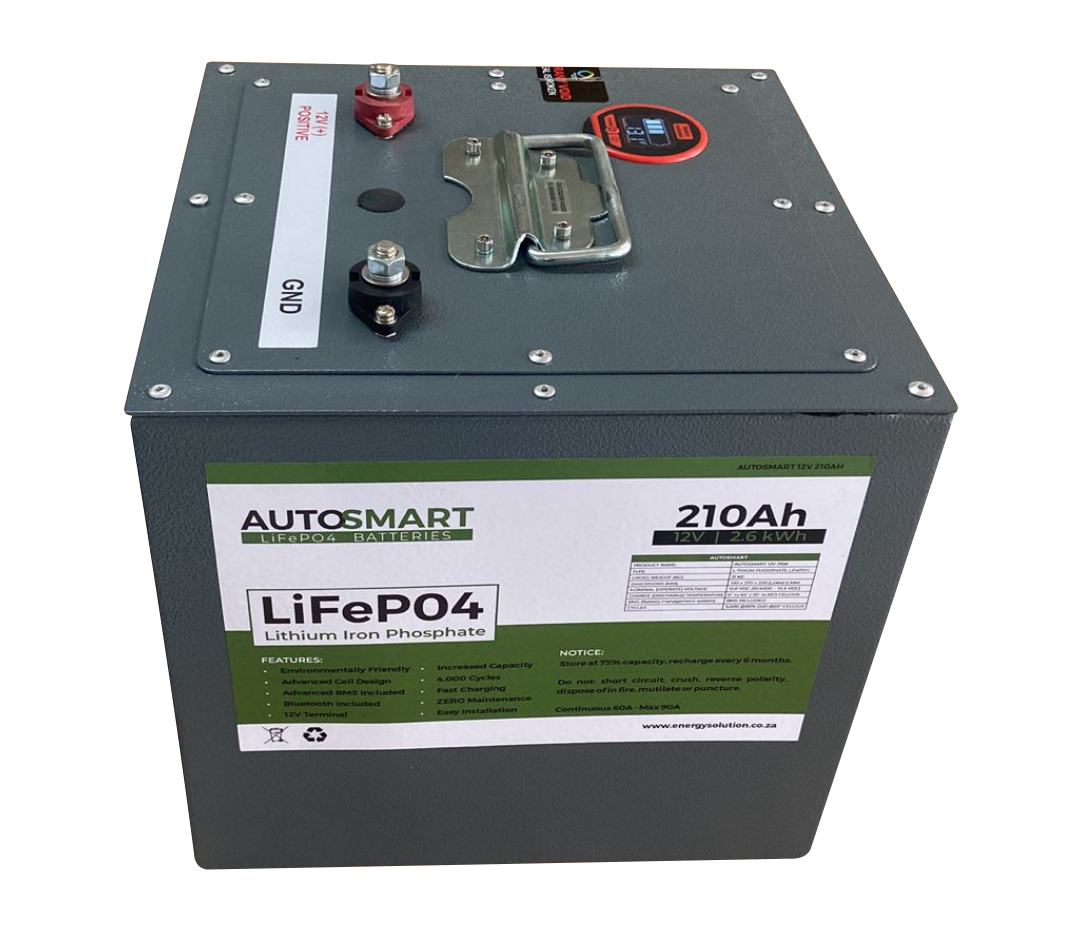

AUTOSMART 12V 210AH
(LIFEPO4 - LITHIUM PHOSPHATE WITH BLUETOOTH)
Description:
Nominal Voltage:
12.8V
Nominal Capacity:
210Ah
Energy:
2,688Wh
Dimensions:
530 x 250 x 220 (L x W x H) mm
Weight:
16kg
Cycle:
3,500 Cycles
Charge Volt:
14V - 14,6V
Max. Charge Current:
105A (0.5C)
Charge Cut-off Voltage:
14.6V +/- 0.2V
Discharge Cut-off Voltage:
10.4V
Max. Continuous Current:
200A
Max. Pulse Current:
300A
IP56:
Water Dust Resistance. Plastic case with M8 Terminal
  • Do not spray or submerge in water. Metal case with M8 terminal.



  • BMS: Protection Function

Over charge protection, over discharge protection, over current protection, short current protection, balanced function, temperature protection.



  • Bluetooth included - via smart phone (smart BMS on istore / playstore).



  • Monitor - SOC, SOH, cell balance, cycle count.

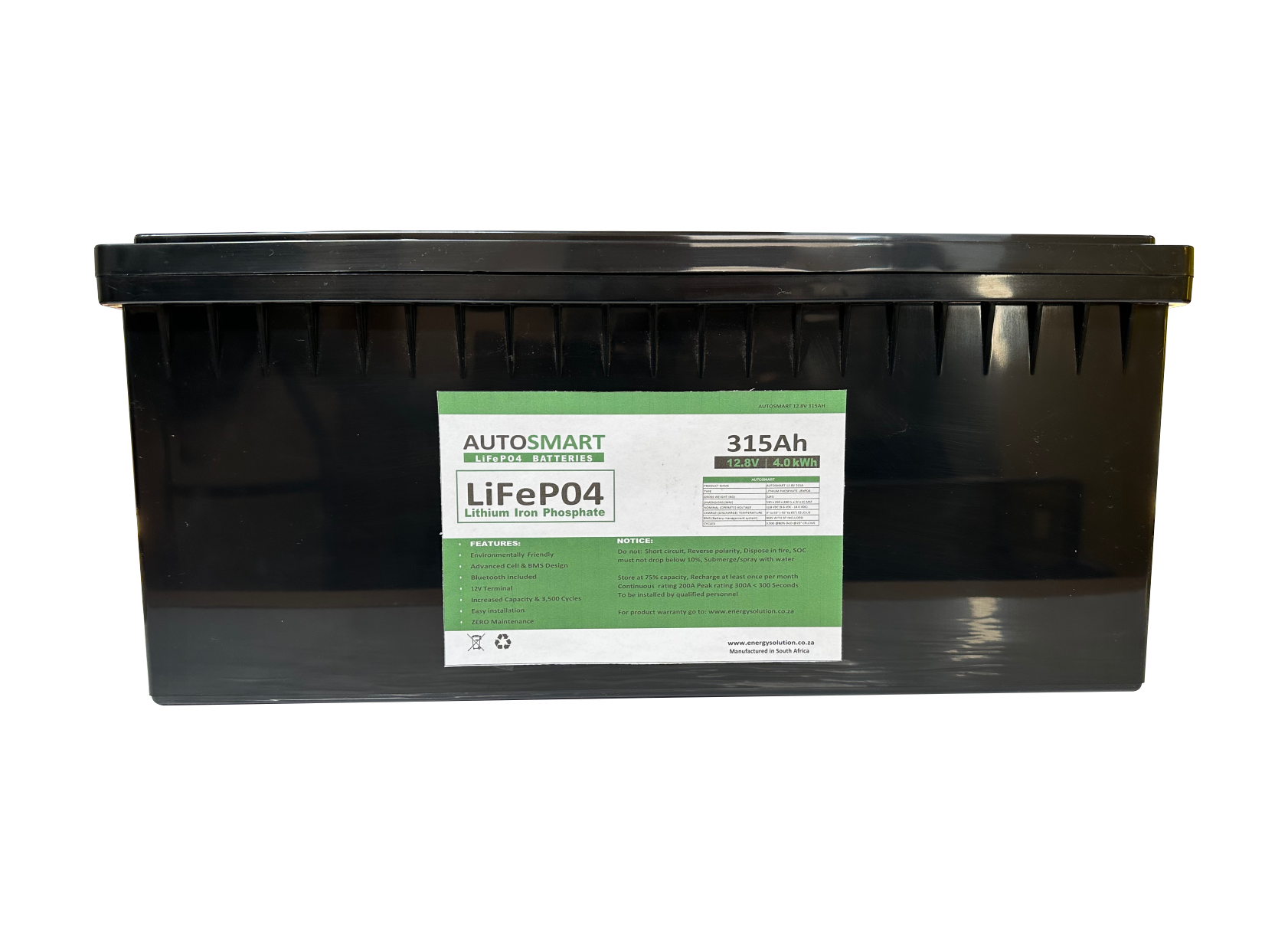

AUTOSMART 12V 315AH
(LIFEPO4 - LITHIUM PHOSPHATE WITH BLUETOOTH)
Description:
Nominal Voltage:
12.8V
Nominal Capacity:
315Ah
Energy:
4,032Wh
Dimensions:
530 x 250 x 220 (L x W x H) mm
Weight:
24kg
Cycle:
3,500 Cycles
Charge Volt:
14V - 14,6V
Max. Charge Current:
152.5A (0.5C)
Charge Cut-off Voltage:
14.6V +/-0.2V
Discharge Cut-off Voltage:
10.4V
Max. Continuous Current:
200A
Max. Pulse Current:
300A
IP56:
Water Dust Resistant. Plastic case with M8 Terminal
  • BMS: Protection Function

Over charge protection, over discharge protection, over current protection, short current protection, balanced function, temperature protection.



  • Bluetooth included - via smart phone (smart BMS on istore / playstore).



  • Monitor - SOC, SOH, cell balance, cycle count.

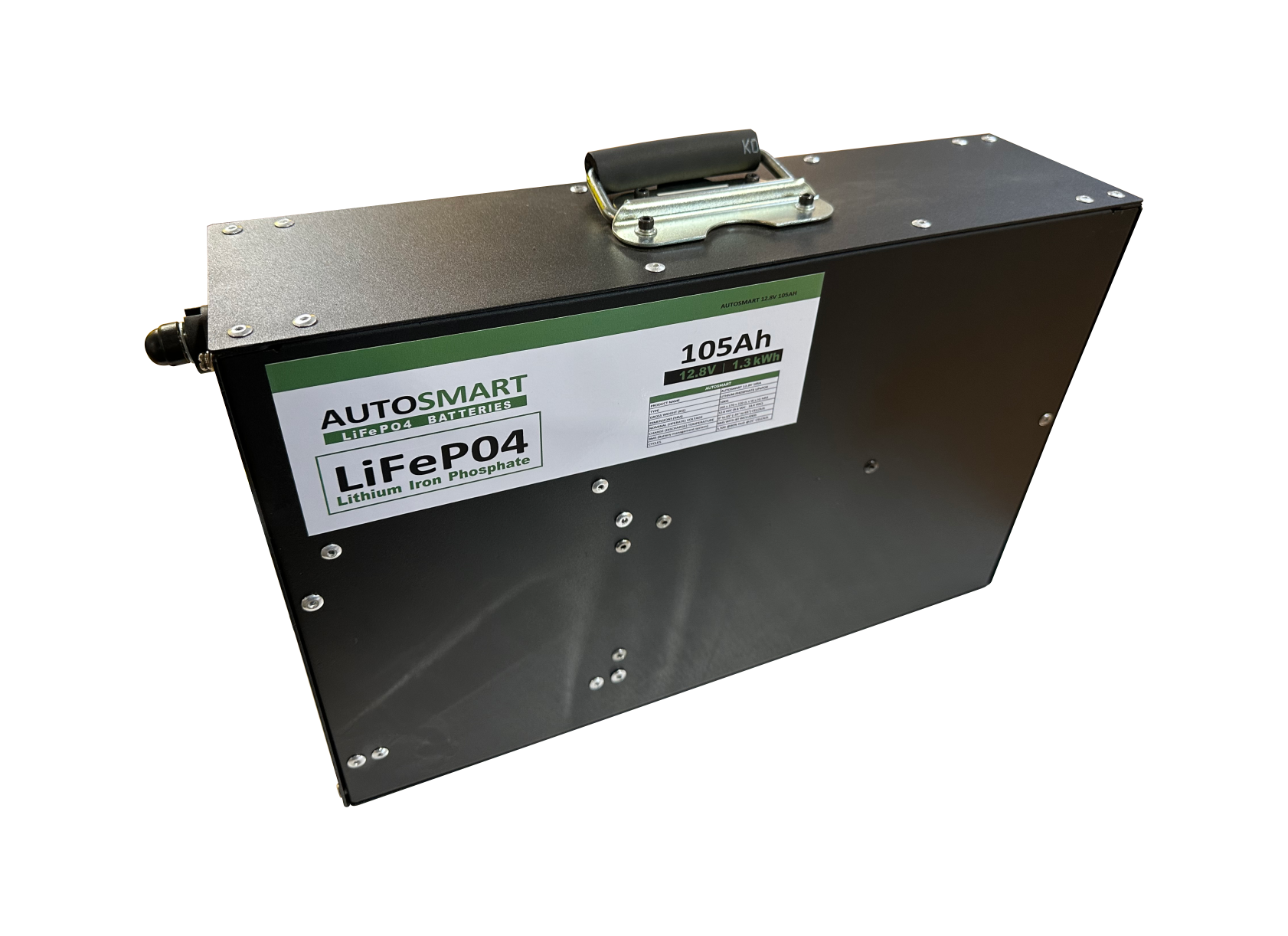

AUTOSMART 12V 105AH - Trailer
(LIFEPO4 - LITHIUM PHOSPHATE WITH BLUETOOTH)
Description:
Nominal Voltage:
12.8V
Nominal Capacity:
105Ah
Energy:
1,344Wh
Dimensions:
430 x 110 x 280 (L x W x H) mm
Weight:
12kg
Cycle:
3,500 Cycles
Charge Volt:
14V - 14,6V
Max. Charge Current:
52.5A (0.5C)
Charge Cut-off Voltage:
14.6V +/- 0.2V
Discharge Cut-off Voltage:
10.4V
Max. Continuous Current:
100A
Max. Pulse Current:
150A
  • Do not spray or submerge in water. Metal case with M8 terminal.



  • BMS: Protection Function

Over charge protection, over discharge protection, over current protection, short current protection, balanced function, temperature protection.



  • Bluetooth included - via smart phone (smart BMS on istore / playstore).



  • Monitor - SOC, SOH, cell balance, cycle count.

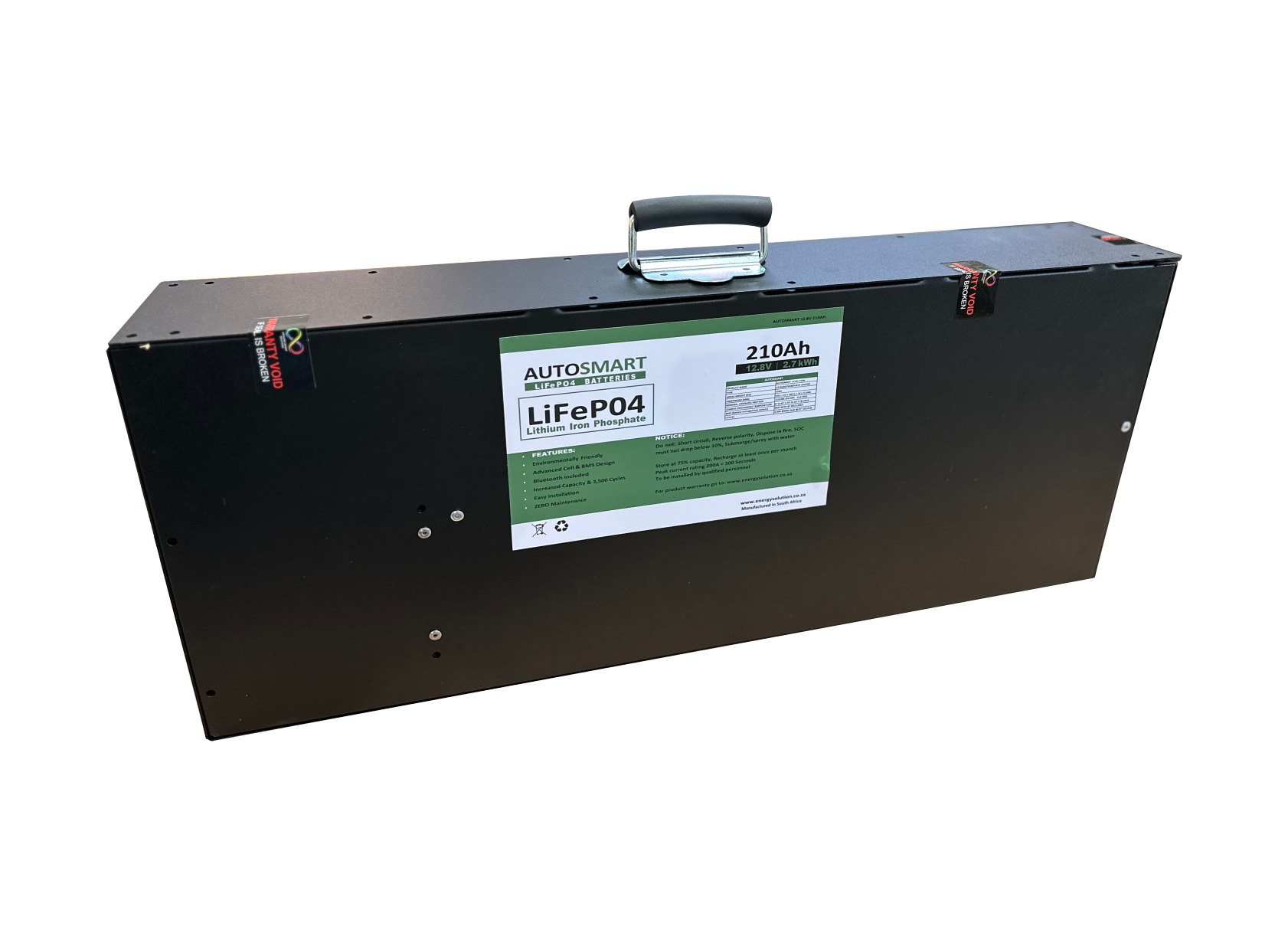

AUTOSMART 12V 210AH - Trailer
(LIFEPO4 - LITHIUM PHOSPHATE WITH BLUETOOTH)
Description:
Nominal Voltage:
12.8V
Nominal Capacity:
210Ah
Energy:
2,688Wh
Dimensions:
690 x 110 x 280 (L x W x H) mm
Weight:
24kg
Cycle:
3,500 Cycles
Charge Volt:
14V - 14,6V
Max. Charge Current:
105A (0.5C)
Charge Cut-off Voltage:
14.6V +/-0.2V
Discharge Cut-off Voltage:
10.4V
Max. Continuous Current:
200A
Max. Pulse Current:
300A
  • BMS: Protection Function

Over charge protection, over discharge protection, over current protection, short current protection, balanced function, temperature protection.



  • Bluetooth included - via smart phone (smart BMS on istore / playstore).



  • Monitor - SOC, SOH, cell balance, cycle count.

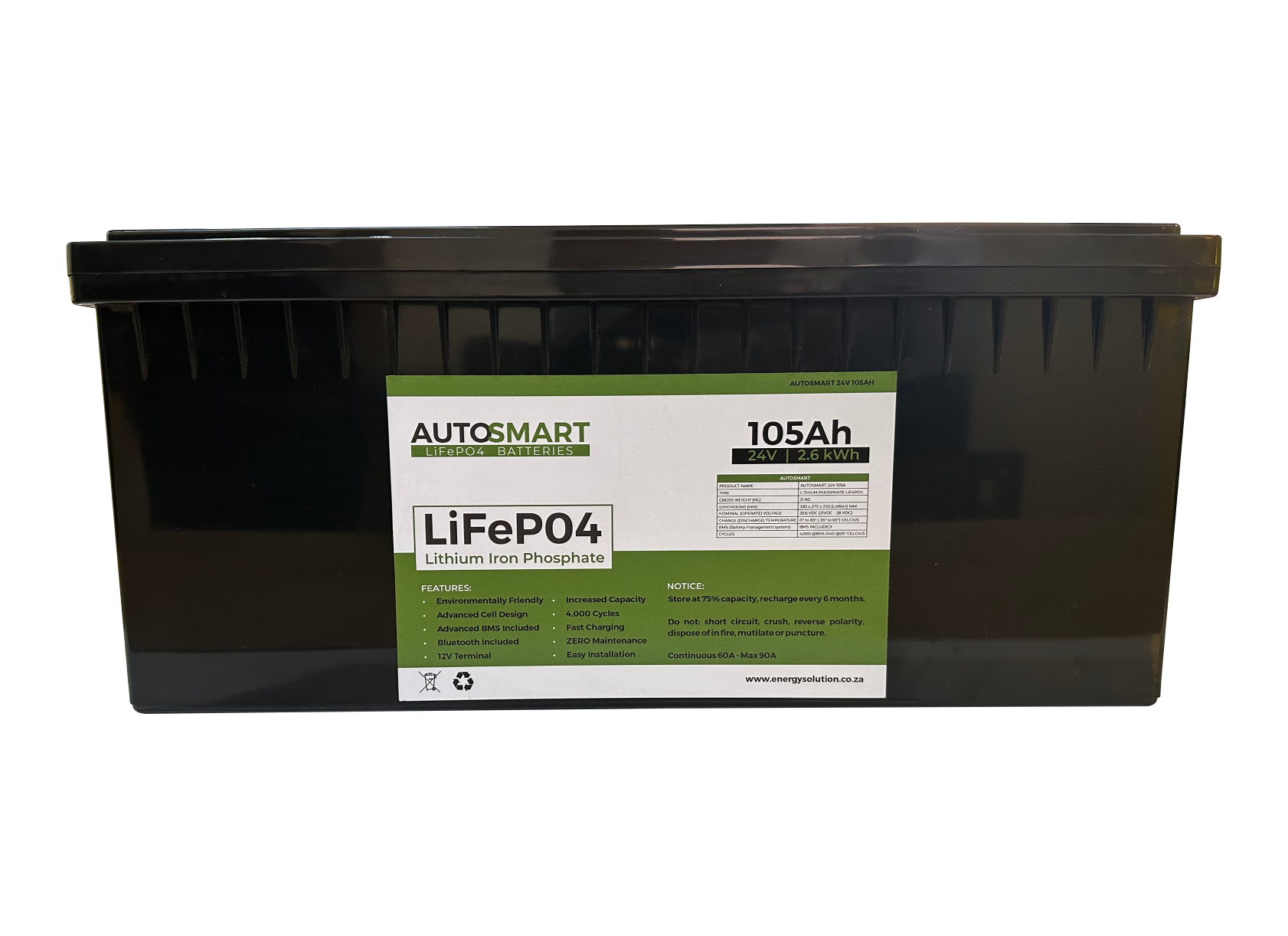

AUTOSMART 24V 105AH
(LIFEPO4 - LITHIUM PHOSPHATE WITH BLUETOOTH)
Description:
Nominal Voltage:
25.6V
Nominal Capacity:
105Ah
Energy:
2,688Wh
Dimensions:
530 x 250 x 220 (L x W x H) mm
Weight:
16kg
Cycle:
3,500 Cycles
Charge Volt:
28.8V
Max. Charge Current:
52.5A (0.5C)
Charge Cut-off Voltage:
28.8V +/- 0.2V
Discharge Cut-off Voltage:
20.8V
Max. Continuous Current:
100A
Max. Pulse Current:
150A
IP56:
Water Dust Resistance. Plastic case with M8 Terminal
  • Do not spray or submerge in water. Metal case with M8 terminal.



  • BMS: Protection Function

Over charge protection, over discharge protection, over current protection, short current protection, balanced function, temperature protection.



  • Bluetooth included - via smart phone (smart BMS on istore / playstore).



  • Monitor - SOC, SOH, cell balance, cycle count.

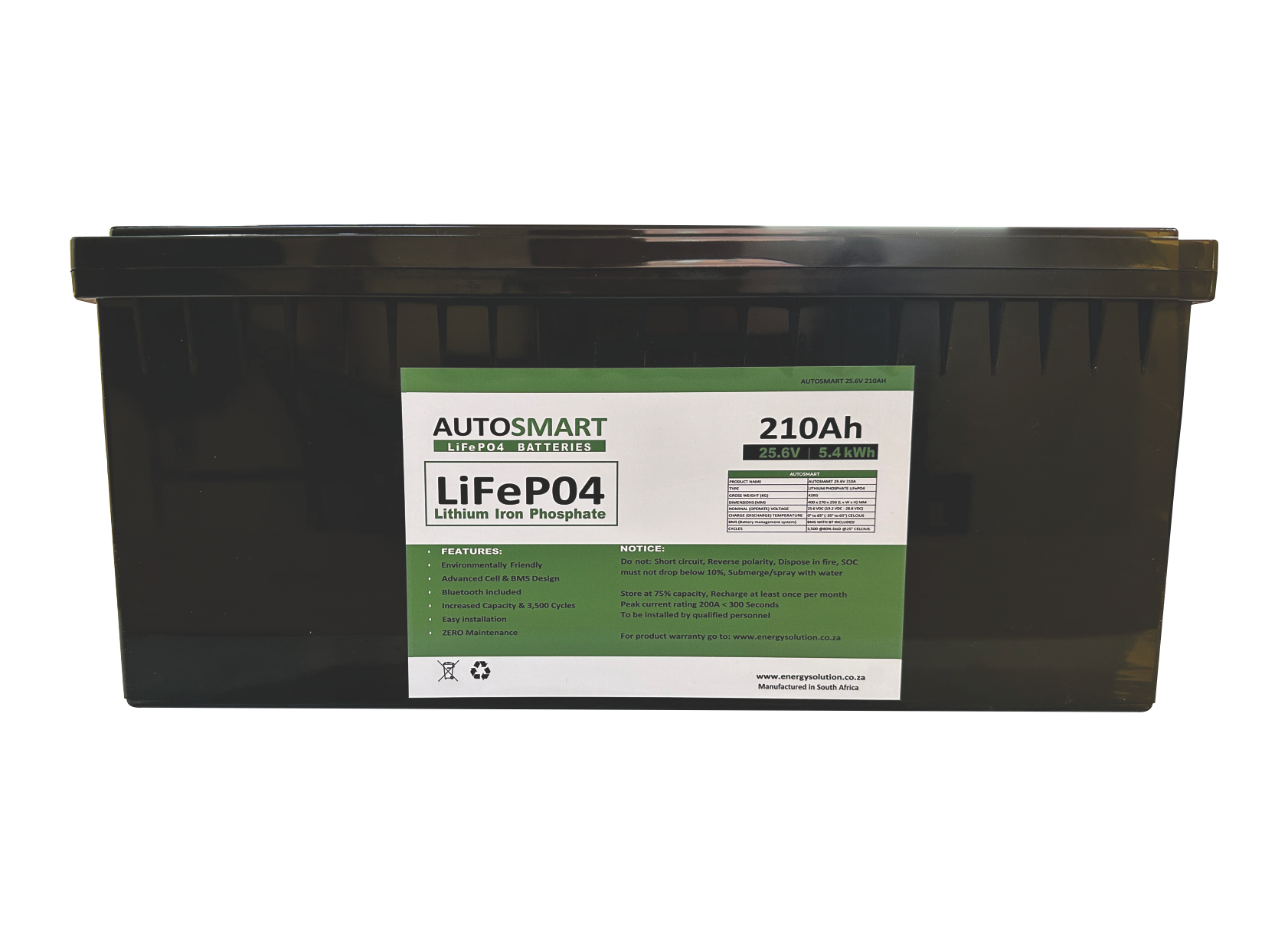

AUTOSMART 24V 210AH
(LIFEPO4 - LITHIUM PHOSPHATE WITH BLUETOOTH)
Description:
Nominal Voltage:
25.6V
Nominal Capacity:
210Ah
Energy:
5,376Wh
Dimensions:
400 x 270 x 250 (L x W x H) mm
Weight:
42kg
Cycle:
3,500 Cycles
Charge Volt:
28.8V
Max. Charge Current:
100A (0.5C)
Charge Cut-off Voltage:
28.8V +/-0.2V
Discharge Cut-off Voltage:
20.8V
Max. Continuous Current:
200A
Max. Pulse Current:
300A
  • Do not spray or submerge in water. Metal case with M8 terminal.



  • BMS: Protection Function

Over charge protection, over discharge protection, over current protection, short current protection, balanced function, temperature protection.



  • Bluetooth included - via smart phone (smart BMS on istore / playstore).



  • Monitor - SOC, SOH, cell balance, cycle count.

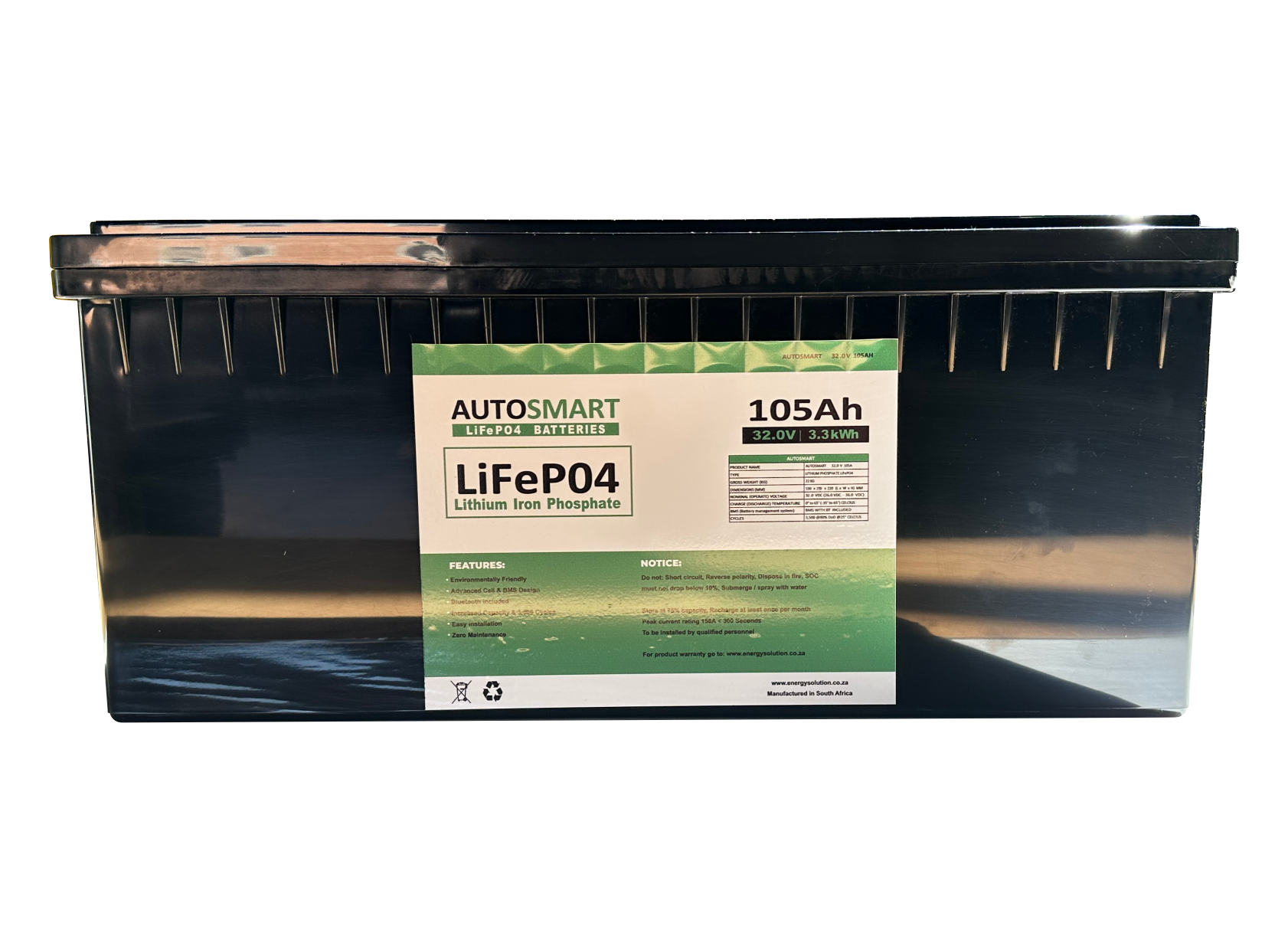

AUTOSMART 32V 105AH
(LIFEPO4 - LITHIUM PHOSPHATE WITH BLUETOOTH)
Description:
Nominal Voltage:
32.0V
Nominal Capacity:
105Ah
Energy:
3,360Wh
Dimensions:
530 x 250 x 220 (L x W x H) mm
Weight:
20kg
Cycle:
3,500 Cycles
Charge Volt:
35V - 36V
Max. Charge Current:
52.5A (0.5C)
Charge Cut-off Voltage:
36V +/- 0.2V
Discharge Cut-off Voltage:
26V
Max. Continuous Current:
100A
Max. Pulse Current:
150A
IP56:
Water Dust Resistance. Plastic case with M8 Terminal
  • BMS: Protection Function

Over charge protection, over discharge protection, over current protection, short current protection, balanced function, temperature protection.



  • Bluetooth included - via smart phone (smart BMS on istore / playstore).



  • Monitor - SOC, SOH, cell balance, cycle count.
